Detail
Overview
Quick Details
Warranty:
3 years
Brand Name:
DO PUMP
Model Number:
EL
Place of Origin:SHIJIAZHUANG, China
Application:
Other, Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking water treatment, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Raw Water Intake, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions, Sand, Mud, Silt, Clay, Mining, Coal Washing,slurry, etc
Power Source:
Electric
Structure:
Single-stage Pump
Cable Length:
As customer request
Outlet Size:
2-16 inch
Pressure:
High Pressure
Theory:
Centrifugal Pump
power supply:
380V,220V,660V
Seal:
mechanical seal
Material:High Chrome
Frequence:
50HZ,60HZ
Structure style:
vertical submersible slurry Pump
Impeller:
Semi-open, closed
Product name:

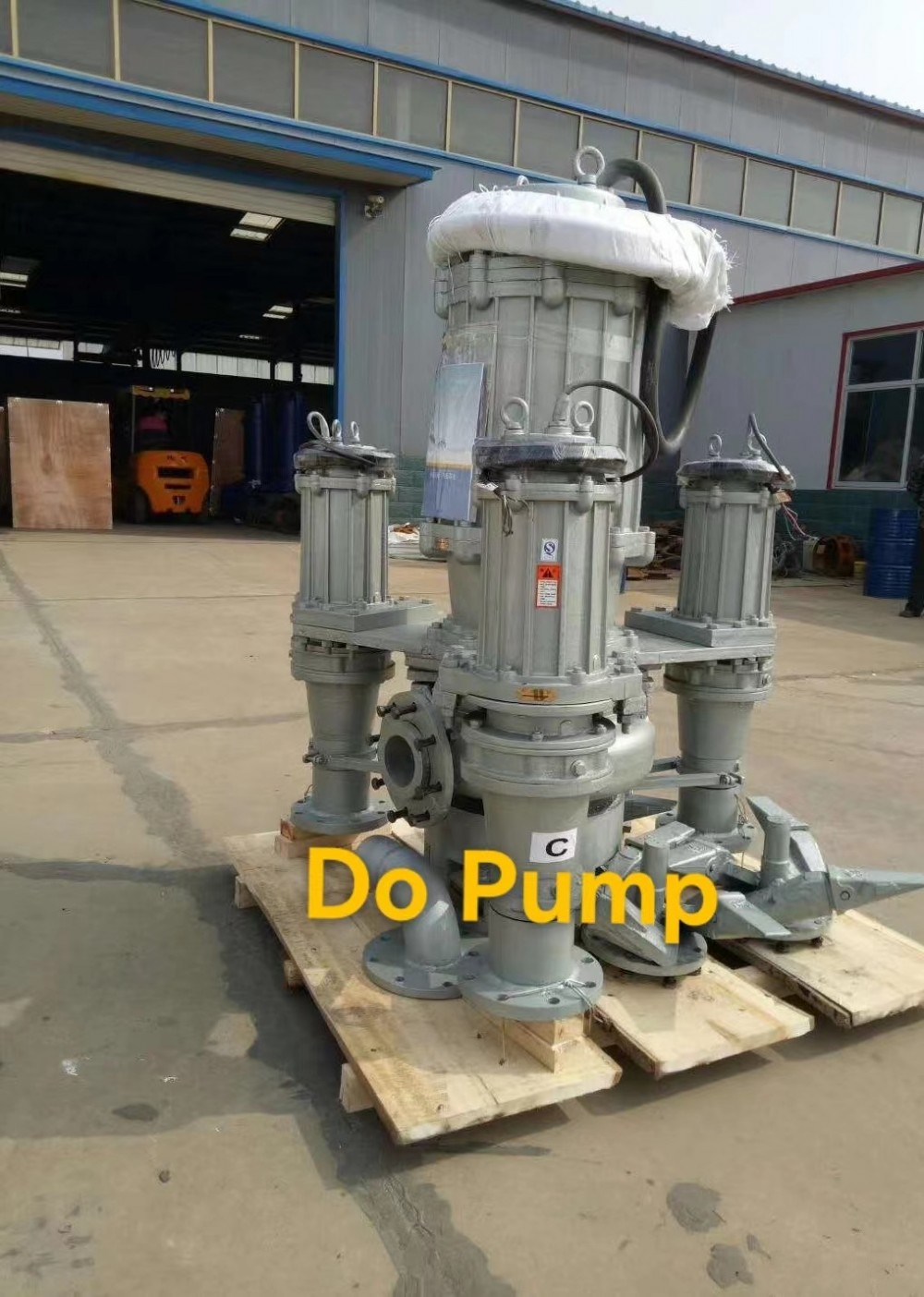

Submersible Sand slurry dredge pump
Supply Ability
Supply Ability
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Fumigated Wooden Case / As customer required
Port
Qingdao,Guangzhou,Shanghai or as customer required
1.Submersible Sand Removal Pump for Sale
a) Pumping tailing slurry for industrial and mining organizations;
b) Sucking silt in sedimentation basin;
c) Pumping silty sand or fine sand for seashore or port;
d) Pumping powdery iron ore for foreign countries, etc;
e) Deliver a solid particles of mud, larger pulp, coal slurry, sandstone;
f) Sucking from all kinds of fly ash power plant, coal slime
2.Corrosion resistant Solid Pump / Mining Pump
a) High productivity--Our pumps are designed to pump fluids containing a high percentage of solids(maximum weight concentration of the ash can reach 45% and maximum weight concentration of the slag can reach 60%).
b) So long service life--Wear parts of agitator pump are all constructed with abrasion resistant materials - hard chromium alloy, so pumps have better stability & longer service life.
c) Various protective--The motor adopts various protective such as overheat protection, water -inlet detecting projection, and can be operated safely for a long term in challenging working conditions.
d) Mechanical seal--Unique mechanical seal device can prevent the electric motor from high pressure water and impurities, thus high suction efficiency can be ensured.
3.Features of Corrosion resistant Solid Pump / Mining Pump
a) Wear parts are all constructed with abrasion resistant materials - chromium alloy, so pumps have better stability & longer service life.
b) Unique mechanical seal device can prevent the electric motor from high pressure water and impurities, thus high suction efficiency can be ensured.
c) Easy installation, operation and cost saving, since no additional vacuum pump or pump house is needed.
d) In addition to the main impeller, a pair of agitation impeller is equipped to help break and mix the sludge.
e) Professional technology support is provided during the whole process of the usage and maintenance.
4.Introduction of Corrosion resistant Solid Pump / Mining Pump
As a manufacturer of submersible agitator slurry pump, “FINE” design it for handling slurry, mud, silt or sand. “FINE” submersible Circle Pump is an excellent combination of heavy duty wear resistant materials, variable input drive power with wide enclosed impeller provides high flow capacities with sufficient power to pump heavy slurries, sand and gravel.
Oil filled bearing housing is good for deep water applications.
The 27% chrome white iron agitator assists in the pumping of slurries by breaking up large particles and agitating high concentrations of solids .
5.Service conditions
a)Power supply: generator or industry electric power, and the capacity of the substation transformator is two to three times of the rated capacity of the motor.
b)Temperature of the medium: The temperature of the medium cannot exceed 60Celsius, and the medium does not contain inflammable or explosive gases.
c)Max weight density of the solid particle: The maximum weight concentration of the solid particles in the medium: the maximum weight concentration of the ash is 45% and the maximum weight concentration of the slag is 60%.
d)The unit works in the medium vertically, and the working status is continuous.
