Performance Characteristics

4.3-inch 24 bit true color LCD screen with 480X272 resolution

Optional operation interface in both Chinese and English

Soft switch function

Insulation resistance, leakage current, surface resistivity, and volume resistivity testing

Clear mouth function

Contact inspection function for capacitive materials

Quick mouth test: 30ms/time

Programmable sequential testing mode

6-speed range, manual or automatic mode

Comparison function of four gears: three gears pass, one gear fails

20 sets of internal files, supporting USB file access

The measurement result data can be saved on a USB flash drive

Oral screenshot function, data recording function

Automatically upgrade system firmware through USB flash drive

Foot pedal switch triggering function

Product Application

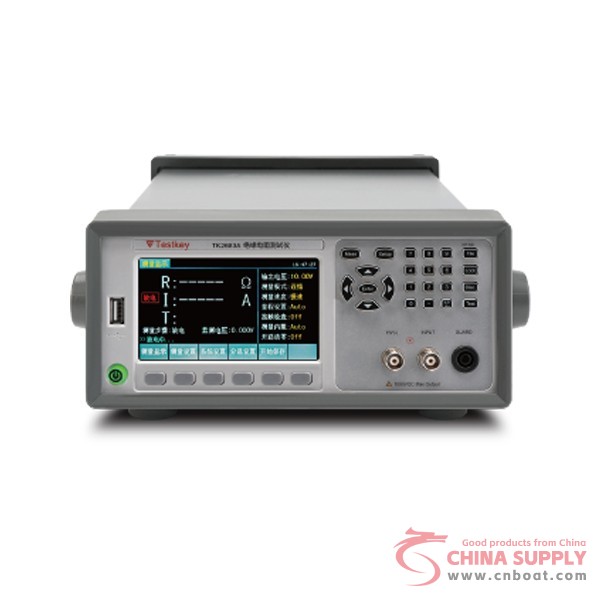

TK2683AX can be applied to measure various electronic components,

Insulation resistance and leakage current of dielectric materials, wires and cables, etc; match

The electrode box can test the surface resistance and volume resistivity of materials
