Performance Characteristics

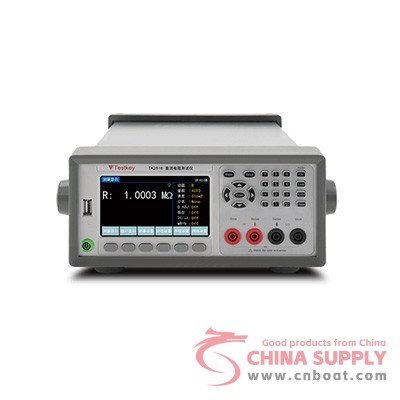

4.3-inch 24 bit true color LCD screen, 480X272 resolution

Optional operation interface in both Chinese and English

The maximum sampling rate of the mouth is about 100 times per second

Maximum resistance accuracy: 0.05%, minimum resolution: 1uQ

Basic accuracy of mouth temperature: 0.2 ° C

Multiple testing function combinations such as R, LPR, T, etc

The mouth supports two temperature sensors, PT100 and PT500

Low voltage testing mode effectively protects the tested component

Temperature conversion function (Δ t)

Temperature compensation function (TC)

Oral misalignment voltage compensation function (OVC)

User self calibration function (0 ADJ)

Oral screenshot function, data recording and parameter saving function

Simultaneously output the comparison results of three levels (over limit, qualified, and audible)

The Handler interface is used to implement online operations

Product Application

Component resistors, motors, relays, and capacitor rivet contacts

◆ Cable and connector testing cables, connectors, various switches

◆ Material testing: Thermal sensitive materials, conductive materials such as metal foils, etc

New energy electric vehicle battery pack connection bridge, cell connection resistance
