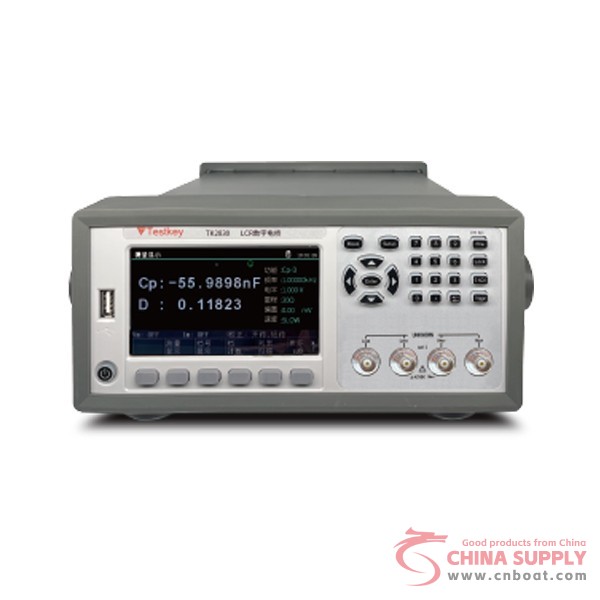

Performance Characteristics

24 bit 4.3-inch color LCD screen display

Optional operation interface in both Chinese and English

2U height, small size, high performance

Basic oral accuracy: 0.05%

The frequency of the mouth is as high as 300KHZ, and there are continuous frequency points

Six main and auxiliary parameters of the mouth

Port signal source: 0-2V/0-20mA

DC bias: ± 5V/5mA,

The maximum mouth speed can reach 13ms

Compare the functions of 10 gears, including over limit, over limit, qualified, and alarm function

Oral screenshot function, data recording and parameter saving function

The instrument operation software can be automatically upgraded through USBHOST

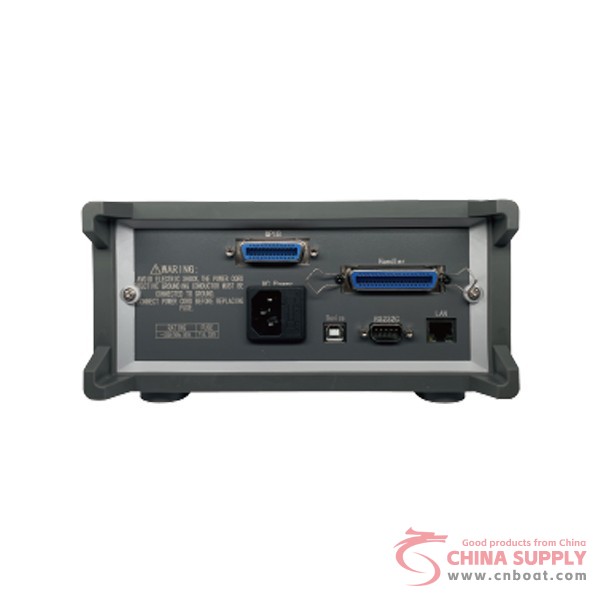

The Handler interface is used to implement online operations

Scope of application

Passive components: inductors, capacitors, resistors, magnetic cores, piezoelectric devices, transformers

Impedance analysis and parameter evaluation of chips and network components, etc

◆ Other components: Impedance measurement of relay circuit board, cable switch, battery, etc
