Single stage single suction vertical sewage pump

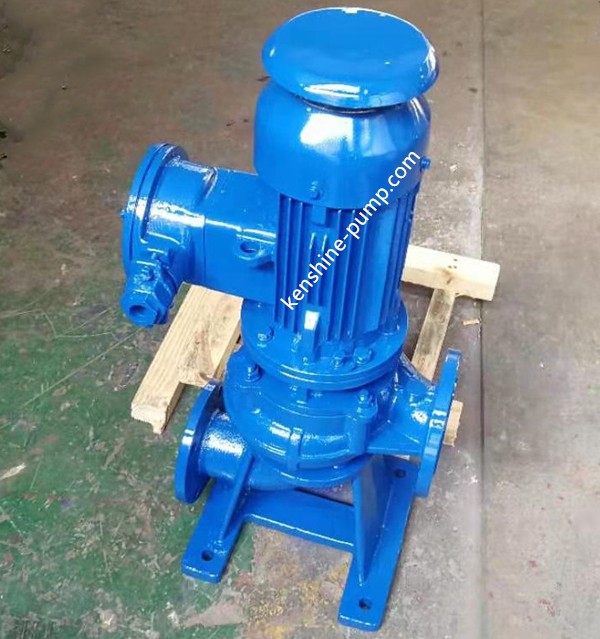

Dry – mounted type vertical sewage pump
The pump is designed and manufactured to have lower inlet, volute impeller with wide flow passage so that the wastewater or sewage with solid particle or fiber etc. impurities can pass impeller and be discharged smoothly. Pedestal base plate makes pump running more stable installation, disassembly, and movement more flexible. Double end face mechanical seal has longer life.
Application:
Factory business seriously polluted wastewater discharge, sewage station of main housing, urban sewage treatment plant water system, civil air defense system drainage stand, waterworks water supply equipment, hospital, hotel of sewage, municipal engineering, construction, mining machine, rural biogas digester, irrigation and other industries to discharge sewage or wastewater containing particles, dirt. The pump can also be used for water and weak corrosive medium.
| model | inlet/outlet | capacity | Head | power | speed | efficiency |
| mm | m3/h | m | kw | r/min | % | |
| 25LW8-22-1.1 | 25 | 8 | 22 | 1.1 | 2825 | 38.5 |
| 32LW12-15-1.1 | 32 | 12 | 15 | 1.1 | 2825 | 40 |
| 40LW15-15-1.5 | 40 | 15 | 15 | 1.5 | 2840 | 45.1 |
| 40LW15-30-2.2 | 40 | 15 | 30 | 2.2 | 2840 | 48 |
| 50LW20-7-0.75 | 50 | 20 | 7 | 0.75 | 1390 | 54 |
| 50LW10-10-0.75 | 50 | 10 | 10 | 0.75 | 1390 | 56 |
| 50LW20-15-1.5 | 50 | 20 | 15 | 1.5 | 2840 | 55 |
| 50LW15-25-2.2 | 50 | 15 | 25 | 2.2 | 2840 | 56 |
| 50LW18-30-3 | 50 | 18 | 30 | 3 | 2880 | 58 |
| 50LW25-32-5.5 | 50 | 25 | 32 | 5.5 | 2900 | 53 |
| 50LW20-40-7.5 | 50 | 20 | 40 | 7.5 | 2900 | 55 |
| 65LW25-15-2.2 | 65 | 25 | 15 | 2.2 | 2840 | 52 |
| 65LW37-13-3 | 65 | 37 | 13 | 3 | 2880 | 55 |
| 65LW25-30-4 | 65 | 25 | 30 | 4 | 2890 | 58 |
| 65LW30-40-7.5 | 65 | 30 | 40 | 7.5 | 2900 | 56 |
| 65LW35-50-11 | 65 | 35 | 50 | 11 | 2930 | 60 |
| 65LW35-60-15 | 65 | 35 | 60 | 15 | 2930 | 63 |
| 80LW40-7-2.2 | 80 | 40 | 7 | 2.2 | 1420 | 52 |
| 80LW43-13-3 | 80 | 43 | 13 | 3 | 2880 | 50 |
| 80LW40-15-4 | 80 | 40 | 15 | 4 | 2890 | 57 |
| 80LW65-25-7.5 | 80 | 65 | 25 | 7.5 | 2900 | 56 |
| 100LW80-10-4 | 100 | 80 | 10 | 4 | 1440 | 62 |
| 100LW110-10-5.5 | 100 | 110 | 10 | 5.5 | 1440 | 66 |
| 100LW100-15-7.5 | 100 | 100 | 15 | 7.5 | 1440 | 67 |
| 100LW85-20-7.5 | 100 | 85 | 20 | 7.5 | 1440 | 68 |
| 100LW100-25-11 | 100 | 100 | 25 | 11 | 1460 | 65 |
| 100LW100-30-15 | 100 | 100 | 30 | 15 | 1460 | 66 |
| 100LW100-35-18.5 | 100 | 100 | 35 | 18.5 | 1470 | 65 |
| 125LW130-15-11 | 125 | 130 | 15 | 11 | 1460 | 62 |
| 120LW130-20-15 | 125 | 130 | 20 | 15 | 1460 | 63 |
| 150LW145-9-7.5 | 150 | 145 | 9 | 7.5 | 1440 | 63 |
| 150LW180-15-15 | 150 | 180 | 15 | 15 | 1460 | 65 |
| 150LW180-20-18.5 | 150 | 180 | 20 | 18.5 | 1470 | 75 |
| 150LW180-25-22 | 150 | 180 | 25 | 22 | 1470 | 76 |
| 150LW130-30-22 | 150 | 130 | 30 | 22 | 1470 | 75 |
| 150LW180-30-30 | 150 | 180 | 30 | 30 | 1470 | 73 |
| 150LW200-30-37 | 150 | 200 | 30 | 37 | 1480 | 70 |
| 200LW300-7-11 | 200 | 300 | 7 | 11 | 970 | 73 |
| 200LW250-11-15 | 200 | 250 | 11 | 15 | 970 | 74 |
| 200LW400-10-22 | 200 | 400 | 10 | 22 | 1470 | 76 |
| 200LW400-13-30 | 200 | 400 | 13 | 30 | 1470 | 73 |
| 200LW250-15-18.5 | 200 | 250 | 15 | 18.5 | 1470 | 72 |
| 200LW300-15-22 | 200 | 300 | 15 | 22 | 1470 | 73 |
| 200LW250-22-30 | 200 | 250 | 22 | 30 | 1470 | 71 |
| 200LW350-25-37 | 200 | 350 | 25 | 37 | 1980 | 75 |
| 200LW400-30-55 | 200 | 400 | 30 | 55 | 1480 | 70 |
| 250LW600-9-30 | 250 | 600 | 9 | 30 | 980 | 74 |
| 250LW600-12-37 | 250 | 600 | 12 | 37 | 1480 | 78 |
| 250LW600-15-45 | 250 | 600 | 15 | 45 | 1480 | 75 |
| 250LW600-20-55 | 250 | 600 | 20 | 55 | 1480 | 73 |
| 250LW600-25-75 | 250 | 600 | 25 | 75 | 1480 | 73 |
| 300LW800-12-45 | 300 | 800 | 12 | 45 | 980 | 76 |
| 300LW500-15-45 | 300 | 500 | 15 | 45 | 980 | 70 |
| 300LW800-15-55 | 300 | 800 | 15 | 55 | 980 | 73 |
| 300LW600-20-55 | 300 | 600 | 20 | 55 | 980 | 75 |
| 300LW800-20-75 | 300 | 800 | 20 | 75 | 980 | 78 |
| 300LW950-20-90 | 300 | 950 | 20 | 90 | 980 | 80 |
| 300LW1000-25-110 | 300 | 1000 | 25 | 110 | 980 | 82 |
| 350LW1100-10-55 | 350 | 1100 | 10 | 55 | 980 | 84.5 |
| 350LW1500-15-90 | 350 | 1500 | 15 | 90 | 980 | 82.5 |
| 350LW1200-18-90 | 350 | 1200 | 18 | 90 | 980 | 83.1 |
| 350LW1100-28-132 | 350 | 1100 | 28 | 132 | 740 | 83.2 |
| 350LW1000-36-160 | 350 | 1000 | 36 | 160 | 740 | 78.5 |
| 400LW1500-10-75 | 400 | 1500 | 10 | 75 | 980 | 82.1 |
| 400LW2000-15-132 | 400 | 2000 | 15 | 132 | 740 | 85.5 |
| 400LW1700-22-160 | 400 | 1700 | 22 | 160 | 740 | 82.1 |
| 400LW1500-26-160 | 400 | 1500 | 26 | 160 | 740 | 83.5 |
| 400LW1700-30-200 | 400 | 1700 | 30 | 200 | 740 | 83.5 |
| 400LW1800-32-250 | 400 | 1800 | 32 | 250 | 740 | 82.1 |
| 500LW2500-10-110 | 500 | 2500 | 10 | 110 | 740 | 82 |
| 500LW2600-15-160 | 500 | 2600 | 15 | 160 | 740 | 83 |
| 500LW2400-22-220 | 500 | 2400 | 22 | 220 | 740 | 84 |
| 500LW2600-24-250 | 500 | 2600 | 24 | 250 | 740 | 82 |
