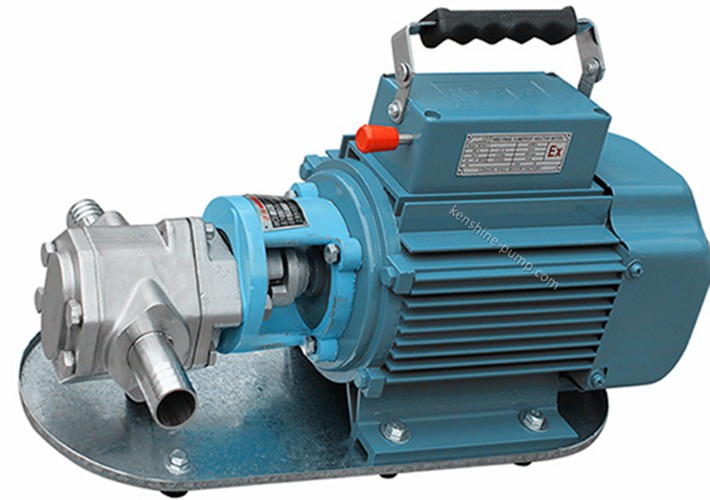

WCB stainless steel gear pump with single-phase explosion-proof motor can transport gasoline and other flammable liquid, also can transport corrosive liquid. The motor adopts aluminum case explosion-proof motor. The pump is with stainless steel gear and stainless steel pump body and has the advantages of high reliability self-suction ability, compact structure and easy to use
WCB Gear oil pump can transport gasoline alcohol xylene and other flammable and explosive medium
Product features:
• easy maintenance
• reliable performance
• long service life
• simple appearance
• advanced and reasonable structure
Liquid temperature is not higher than 70℃
WCB explosion-proof oil pump is specially designed for gasoline and other flammable liquid. The oil pump adopts the motor of cast aluminum housing and is equipped with copper gear, fluorine rubber oil seal. The oil pump has the advantages of safe and reliable, strong self-absorption capacity, compact structure, easy to use and so on.
Features:
Used in gasoline, methanol, alcohol
220V 380V explosion-proof motor
Fluorine rubber oil seal
Copper gear
WCB gear oil pump can convey viscous medium such as oil, hydraulic oil, lubricating oil, white oil, etc. In special places such as tanker oil depot chemical plant. The pump can be optional with explosion-proof motor with strong reliability self-suction ability, compact structure and easy to use
WCB ordinary gear oil pump belongs to low pressure micro portable energy saving oil transfer pump. The pump adopts the bearing and transmission medium of isolated structure, the separate lubrication of the bearing, gear made of alloy steel and special heat treatment process, the gear surface hardness can reach more than HRC60, have extremely strong wear resistance, improve the service life of pump. Compared with the ordinary gear pump, in the transfer of no lubricity or poor lubricity or containing fine particles of liquid, has a strong applicability, is a typical soap pump. The gear oil pump can transport diesel kerosene and other light medium
| Model | Size(mm) | Flow(L/min) | Head(m) | Power(KW) | Valtage(V) | Speed(rpm） | Pump Material | Gear |
| WCB-30 | 20 | 30 | 30 | 0.37 | 220/380 | 2800/1450 | SS304/Cast iron | alloy steel/stainless steel/bronze |
| WCB-50 | 20 | 50 | 30 | 0.55 | 220/380 | 2800/1450 | SS304/Cast iron | |
| WCB-75 | 25 | 75 | 30 | 0.75 | 220/380 | 2800/1450 | SS304/Cast iron | |
| WCB-100 | 32 | 100 | 30 | 1.1 | 220/380 | 2800/1450 | SS304/Cast iron |
