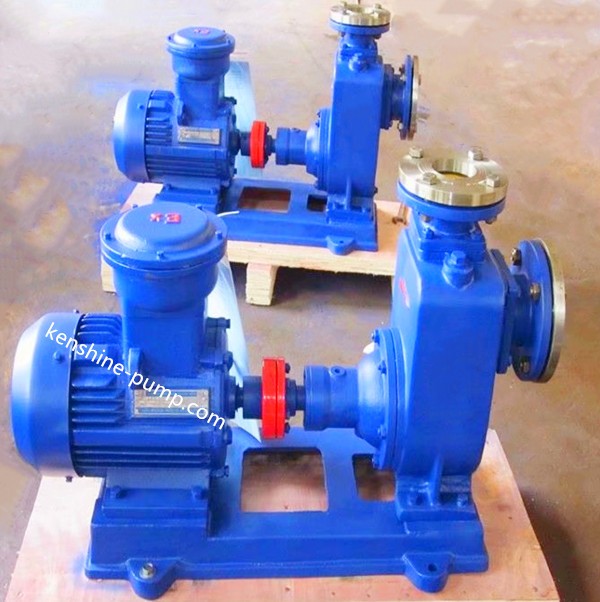

CYZ-A Series self priming centrifugal oil pump
CYZ-A self priming centrifugal oil pump has the advantages such as simple structure and convenient operation and steady running and large discharge capacity and high efficiency and low noise and long life etc. The pump has the strong self priming performance and suction pipeline need not install foot valve. It is widely used to transport gasoline,kerosene,diesel oil, oil for aviatin in oil warehouse,oil station,oil tanker,dock,tank truck,airdrome etc. It can also be used in chemical industry,pharmaceutics,brewage,electroplate,printing and dyeing,papermaking,electric power,mine etc.
Medium temperature range:-20 celsius degree to 80 celsius degree, viscidity≤100centipoise,Particles consistency can reach 30%.
Parameter:
Model | Capacity | Head | Suction height | Speed | Power | Caliber mm | ||
(m3/h) | (L/S) | Inlet | Outlet | |||||
25CYZ-A-20 | 3.2 | 0.9 | 20 | 6.5 | 2900 | 0.75 | 25 | 25 |
25CYZ-A-32 | 3.2 | 0.9 | 32 | 6.5 | 2900 | 1.1 | 25 | 25 |
40CYZ-A-20 | 6.3 | 1.8 | 20 | 6.5 | 2900 | 1.1 | 40 | 32 |
40CYZ-A-40 | 10 | 2.8 | 40 | 6.5 | 2900 | 4 | 50 | 40 |
50CYZ-A-12 | 15 | 4.2 | 12 | 6.5 | 2900 | 1.5 | 50 | 50 |
50CYZ-A-20 | 18 | 5 | 20 | 6.5 | 2900 | 2.2 | 50 | 50 |
50CYZ-A-35 | 14 | 3.9 | 35 | 6.5 | 2900 | 4 | 50 | 50 |
50CYZ-A-40 | 10 | 2.8 | 40 | 6.5 | 2900 | 4 | 50 | 50 |
50CYZ-A-50 | 12.5 | 3.5 | 50 | 6.5 | 2900 | 5.5 | 50 | 50 |
50CYZ-A-60 | 15 | 4.2 | 60 | 6.5 | 2900 | 7.5 | 50 | 50 |
50CYZ-A-75 | 20 | 5.6 | 75 | 6.5 | 2900 | 11 | 50 | 50 |
65CYZ-A-15 | 30 | 8.3 | 15 | 6.5 | 2900 | 3 | 65 | 50 |
65CYZ-A-32 | 25 | 6.9 | 32 | 6 | 2900 | 5.5 | 65 | 50 |
80CYZ-A-13 | 35 | 9.7 | 13 | 6 | 2900 | 3 | 80 | 65 |
80CYZ-A-17 | 43 | 12 | 17 | 6 | 2900 | 4 | 80 | 65 |
80CYZ-A-22 | 40 | 11.1 | 22 | 6 | 2900 | 5.5 | 80 | 65 |
80CYZ-A-25 | 50 | 13.9 | 25 | 6 | 2900 | 7.5 | 80 | 80 |
80CYZ-A-32 | 50 | 13.9 | 25 | 6 | 2900 | 7.5 | 80 | 80 |
80CYZ-A-55 | 60 | 16.7 | 55 | 6 | 2900 | 18.5 | 80 | 80 |
80CYZ-A-70 | 60 | 16.7 | 70 | 6 | 2900 | 22 | 80 | 80 |
100CYZ-A-20 | 100 | 27.8 | 20 | 6 | 2900 | 11 | 100 | 80 |
100CYZ-A-40 | 100 | 27.8 | 40 | 6 | 2900 | 22 | 100 | 100 |
100CYZ-A-40A | 100 | 27.8 | 40 | 6 | 1450 | 22 | 100 | 100 |
100CYZ-A-65 | 100 | 27.8 | 65 | 6 | 2900 | 30 | 100 | 100 |
100CYZ-A-75 | 70 | 19.4 | 75 | 6 | 2900 | 30 | 100 | 100 |
150CYZ-A-45 | 170 | 47.2 | 45 | 5 | 2900 | 37 | 150 | 100 |
150CYZ-A-55 | 170 | 47.2 | 55 | 5 | 2900 | 45 | 150 | 100 |
150CYZ-A-65 | 170 | 47.2 | 65 | 5 | 2900 | 55 | 150 | 100 |
150CYZ-A-80 | 160 | 44.4 | 80 | 5 | 2900 | 55 | 150 | 100 |
200CYZ-A-63 | 280 | 77.8 | 63 | 5 | 1450 | 90 | 200 | 150 |
250CYZ-A-50 | 400 | 111.1 | 50 | 5 | 1450 | 90 | 250 | 200 |
300CYZ-A-50 | 500 | 138.9 | 50 | 5 | 1450 | 110 | 300 | 250 |
