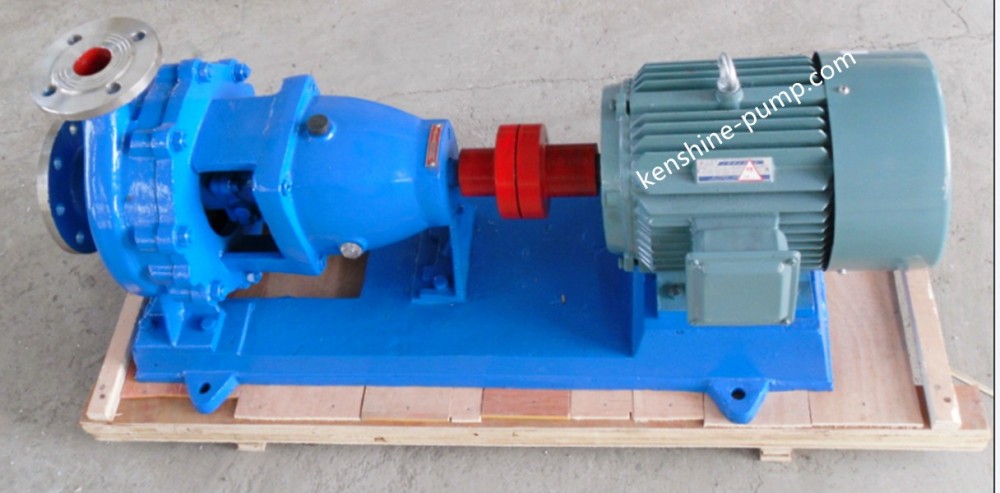

IH chemical pump is used to transfer alkali, organic solvents, acids etc. corrosive fluids.
Pump can be equipped with single end face mechanical seal or double end faces mechanical seal and Cooling water flushing device.
Pump case ,impeller, pump cover is made of stainless steel materials (SS304, SS316, SS316L)
WB2 normal mechanical seal: suitable for strong acid, strong alkali,corrosive clear liquids
Cartridge double end face mechanical seal: suitable for the medium with high temperature and particles.
High quality bearing, three- claw shaft coupling (for middle and small pump), pin shaft coupling (for big pump), diaphragm shaft coupling according to the user’s requirements.
Single stage single suction cantilever centrifugal pump, back pullout structure, the impeller can be removed from the back of the pump body, without removing the pump import and export pipeline
| Model | Capacity | Head | Speed | Motor power | Caliber mm | |
| mз/h | m | r/min | KW | Inlet | Outlet | |
| IH50-32-125 | 12.5 | 20 | 2900 | 2.2 | 50 | 32 |
| 6.3 | 5 | 1450 | 0.55 | 50 | 32 | |
| IH50-32-160 | 12.5 | 32 | 2900 | 3 | 50 | 32 |
| 6.3 | 8 | 1450 | 0.55 | 50 | 32 | |
| IH50-32-200 | 12.5 | 50 | 2900 | 0.5 | 50 | 32 |
| 6.3 | 12.5 | 1450 | 0.75 | 50 | 32 | |
| IH50-32-250 | 12.5 | 80 | 2900 | 11 | 50 | 32 |
| 6.3 | 20 | 1450 | 1.5 | 50 | 32 | |
| IH65-50-125 | 25 | 20 | 2900 | 3 | 65 | 50 |
| 12.5 | 5 | 1450 | 0.55 | 65 | 50 | |
| IH65-50-160 | 25 | 32 | 2900 | 5.5 | 65 | 50 |
| 12.5 | 8 | 1450 | 0.75 | 65 | 50 | |
| IH65-40-200 | 25 | 50 | 2900 | 7.5 | 65 | 40 |
| 12.5 | 12.5 | 1450 | 1.1 | 65 | 40 | |
| IH65-40-250 | 25 | 80 | 2900 | 15 | 65 | 40 |
| 12.5 | 20 | 1450 | 2.2 | 65 | 40 | |
| IH65-40-315 | 25 | 125 | 2900 | 30 | 65 | 40 |
| 12.5 | 32 | 1450 | 4 | 65 | 40 | |
| IH80-65-125 | 50 | 20 | 2900 | 5.5 | 80 | 65 |
| 25 | 5 | 1450 | 0.75 | 80 | 65 | |
| IH80-65-160 | 50 | 32 | 2900 | 7.5 | 80 | 65 |
| 25 | 8 | 1450 | 1.5 | 80 | 65 | |
| IH80-50-200 | 50 | 50 | 2900 | 15 | 80 | 50 |
| 25 | 12.5 | 1450 | 2.2 | 80 | 50 | |
| IH80-50-250 | 50 | 80 | 2900 | 22 | 80 | 50 |
| 25 | 20 | 1450 | 3 | 80 | 50 | |
| IH80-50-315 | 50 | 125 | 2900 | 37 | 80 | 50 |
| 25 | 32 | 1450 | 5.5 | 80 | 50 | |
| IH100-80-125 | 100 | 20 | 2900 | 11 | 100 | 80 |
| 50 | 5 | 1450 | 1.5 | 100 | 80 | |
| IH100-80-160 | 100 | 32 | 2900 | 15 | 100 | 80 |
| 50 | 8 | 1450 | 2.2 | 100 | 80 | |
| IH100-65-200 | 100 | 50 | 2900 | 22 | 100 | 65 |
| 50 | 12.5 | 1450 | 4 | 100 | 65 | |
| IH100-65-250 | 100 | 80 | 2900 | 37 | 100 | 65 |
| 50 | 20 | 1450 | 5.5 | 100 | 65 | |
| IH100-65-315 | 100 | 125 | 2900 | 75 | 100 | 65 |
| 50 | 32 | 1450 | 11 | 100 | 65 | |
| IH125-100-200 | 200 | 50 | 2900 | 45 | 125 | 100 |
| 100 | 12.5 | 1450 | 7.5 | 125 | 100 | |
| IH125-100-250 | 200 | 80 | 2900 | 75 | 125 | 100 |
| 100 | 20 | 1450 | 11 | 125 | 100 | |
| IH125-100-315 | 200 | 125 | 2900 | 110 | 125 | 100 |
| 100 | 32 | 1450 | 15 | 125 | 100 | |
| IH125-100-400 | 100 | 50 | 1450 | 30 | 125 | 100 |
| IH150-125-250 | 200 | 20 | 1450 | 18.5 | 150 | 125 |
| IH150-125-315 | 200 | 32 | 1450 | 30 | 150 | 125 |
| IH150-125-400 | 200 | 50 | 1450 | 45 | 150 | 125 |
| IH200-150-250 | 400 | 20 | 1450 | 37 | 200 | 150 |
| IH200-150-315 | 400 | 32 | 1450 | 55 | 200 | 150 |
| IH200-150-400 | 400 | 50 | 1450 | 90 | 200 | 150 |
