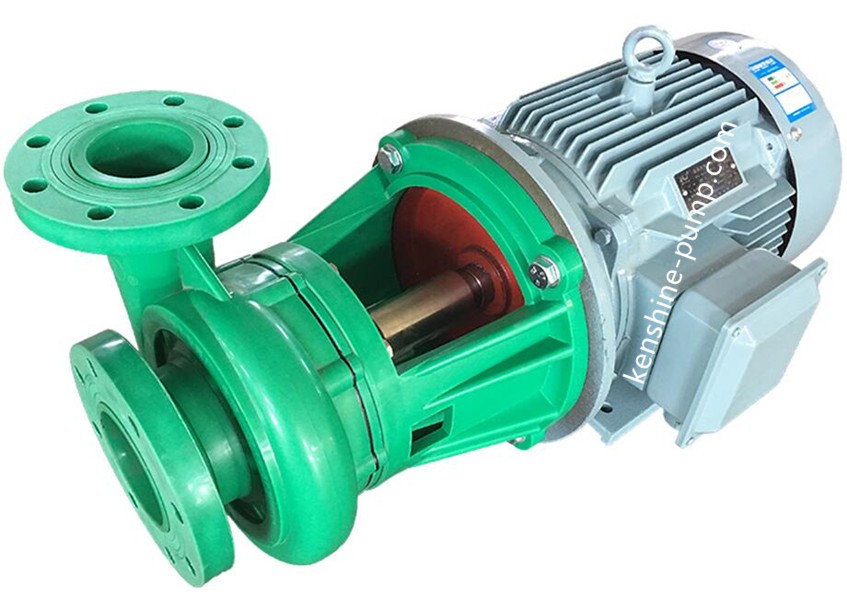

FP/V plastic centrifugal pump is a highly efficient and energy-saving centrifugal pump developed by our company. Medium flow part is made of high-quality glass fiber reinforced polypropylene (RPP), polyvinylidene fluoride (FVDF) injection molding, compact structure, high mechanical strength, good corrosion resistance, high efficiency, overall light weight. RPP material: non-polar, non-toxic, resistant to general acid, alkali, salt solution and derivative medium, working temperature in -20℃to 80℃. PVDF material: good air tightness, pollut-free, non-polar, anti-aging, good mechanical properties, strong oxidant resistance, halogen and aromatic solvent resistance, working temperature in -40℃to 100℃. 80FTD-32 (100FTD-32) is a matching pump of RPP-65 (RPP-80) series water jet vacuum pump
MODEL | Caliber(mm) | flow (m³/h) | head (m) | power kw) | speed (r/min) | Efficiency (%) | NPSHr (m) | connection | |
inlet | outlet | ||||||||
20FPD-5 | 20 | 15 | 1 | 5 | 0.12 | 2900 | 42 | 5 | closed coupling |
20FFD-6 | 20 | 15 | 3 | 6 | 0.37 | 2900 | 43 | 5 | |
25FPD-10 | 25 | 25 | 3.5 | 10 | 0.75 | 2900 | 45 | 5 | |
32FPD-11 | 32 | 25 | 4 | 11 | 0.75 | 2900 | 46 | 5 | |
32FPD-30 | 32 | 25 | 2 | 30 | 1.5 | 2900 | 51 | 6 | |
40FPD-18 | 40 | 32 | 12 | 18 | 1.5 | 2900 | 54.43 | 6 | |
40FPD-22 | 40 | 32 | 12 | 22 | 2.2 | 2900 | 55.63 | 6 | |
40FPD-25 | 40 | 32 | 10 | 25 | 2.2 | 2900 | 55.63 | 6 | |
40FPD-30 | 40 | 32 | 10 | 30 | 3 | 2900 | 51.74 | 6 | |
50FPD-22 | 50 | 40 | 18 | 22 | 2.2 | 2900 | 52 | 6 | |
50FPD-28 | 50 | 40 | 22 | 28 | 3 | 2900 | 53 | 6 | |
50FPD-30 | 50 | 40 | 15 | 30 | 3 | 2900 | 53 | 6 | |
65FPD-20 | 65 | 50 | 25 | 20 | 3 | 2900 | 52 | 6 | |
65FPD-28 | 65 | 50 | 25 | 28 | 4 | 2900 | 55 | 6 | |
80FPD-30 | 80 | 65 | 45 | 30 | 5.5 | 2900 | 68.8 | 4 | |
80FPD-32 | 80 | 65 | 50 | 32 | 7.5 | 2900 | 69.9 | 4 | |
100FPD-20 | 100 | 80 | 100 | 20 | 11 | 2900 | 75 | 4 | |
100FPD-32 | 100 | 80 | 100 | 32 | 15 | 2900 | 76 | 4 | |
40FP-18 | 40 | 32 | 12 | 18 | 1.5 | 2900 | 54.43 | 6 | Shaft coupling |
40FPD-22 | 40 | 32 | 12 | 22 | 2.2 | 2900 | 55.63 | 6 | |
40FP-25 | 40 | 32 | 18 | 25 | 3 | 2900 | 53 | 6 | |
40FP-30 | 40 | 32 | 10 | 30 | 3 | 2900 | 52 | 6 | |
50FP-22 | 50 | 40 | 18 | 22 | 2.2 | 2900 | 52 | 6 | |
50FP-28 | 50 | 40 | 22 | 28 | 3 | 2900 | 53 | 6 | |
65FP-28 | 65 | 50 | 25 | 28 | 4 | 2900 | 55 | 6 | |
80FP-30 | 80 | 65 | 45 | 30 | 5.5 | 2900 | 68.8 | 4 | |
80FP-32 | 80 | 65 | 50 | 32 | 7.5 | 2900 | 68.9 | 4 | |
100FP-20 | 100 | 80 | 100 | 20 | 11 | 2900 | 75 | 4 | |
100FP-32 | 100 | 80 | 100 | 32 | 15 | 2900 | 76 | 4 | |
100FP-40 | 100 | 80 | 100 | 40 | 18.5 | 2900 | 76.2 | 4 | |
