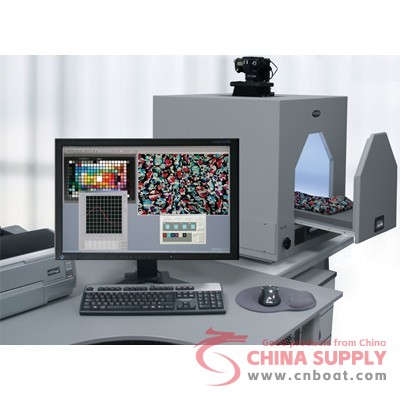

DigiEye Electronic Digital Insight Image Color Management System (Asia-Pacific General Agent) of Verivide Company, UK

【 Summary Description 】 The DigiEye electronic digital Insight image color management system from Verivide in the UK is the world's first widely used system that combines image and color for non-contact color measurement, communication between sample appearance and color, and digital virtual sample processing. It is specifically designed for the classification and statistics of miscellaneous colors, small samples, and colors. The solution to the problem of samples that cannot be measured by colorimeters is also the first to replace human eyes and use image + color as the gray scale for color fastness and staining fastness assessment.

Using a closed standard light source box (the standard light source is D65 daylight, and other light sources can also be specified before purchase), simulate diffuse reflection or 45/0 degree color measurement geometry to capture images. Through the color correction of the camera and the color display, each pixel of the image is accompanied by accurate color data.

Customers can communicate at an ultra-high speed by transmitting images or materials, which greatly improves efficiency.

It can measure various samples with very diverse, small and chaotic colors, high temperatures, non-contact conditions, strange shapes, etc. very conveniently and quickly.

DigiEye Digital Insight Image Color Management System is a product of the successful combination of the academic and technological industries in the UK. In just a few years since its launch, it has been marketed to hundreds of users in more than 50 countries. This system combines images with real colors, enabling the appearance and color of samples to be visually observed on a computer screen or evaluated and compared based on data for color difference grades. It eliminates the influence of human factors on the results of color fastness testing, making the rating more scientific and the results more accurate.

The DigiEye system takes images of samples to truly display their effects under different texture and texture conditions (the only system in the world that offers both d/8° and 45°/0° simultaneously), converts image data into commonly used color data such as L*a*b*, and can measure extremely small colors and classify them. It can ensure accurate and reliable color testing methods and high-precision imaging effects. The non-contact color and appearance image testing method is composed of a fully enclosed adjustable standard light box and other hardware, as well as fully functional software. It can not only avoid the interference of environmental colors to obtain accurate color values, but also measure the color and appearance of curved surfaces

Applicable products are as follows:

● Clothing, textiles and various accessories

● All kinds of toys

● Various food, beverage and packaging designs

● Electronic products, including mobile phones, cameras and computers,

● Transparent or semi-transparent products, including alcoholic beverages and various wine bottles,

● Plastic and ceramic products

Main parameters:

Digital image characterization software can convert the RGB of the image picker to the CIE system under fixed lighting conditions in the light source box.

2. It can measure the L, a, b (L*, a*, b*), L*, C*, h, Δ E values, etc. of the sample

3. The calibration of digital cameras can achieve an average chromatic aberration (DE00) of less than 1.2

4. The camera image box can achieve (DE00) less than 1.0 on the light box

5. Calibrate the display to achieve an average color difference (DE00) of less than 1.2

6. The image grabber comes with a Verivide standard D65 light source (it's a standard light source box!)

7. Images and colors are captured using a non-contact method and sent into the system. The entire process only takes a few seconds and is suitable for capturing objects with irregular surface shapes, uneven distribution and non-solid surfaces.

8. Images can be captured through Diffuse reflection or by using lighting methods from different angles (such as 45/0).

9. The internal sample rack is in Monsel standard grey.

10. Equipped with a correction color card of over 150 colors and a uniform white board;

11. Equipped with a 17-megapixel single-lens reflex digital camera

12. Screen color characterization can precisely correct the colors displayed on LCD monitors.

13. Color measurement can describe the captured images according to chromaticity coordinates and spectral reflectance data.

14. Object texture characterization and analogization, creating an image library based on representative textures, can be re-colored to any color.

15. Color difference analysis: Compare the colors of different areas on the screen. Multiple color difference formulas are available, including the latest CIE2000.

16. Quality control software function: Simulate colors under multiple different light sources; Display reflectance/transmittance; Tolerance range setting; Qualified/unqualified determination Calculate various color difference values; Calculation of lightness value Calculation of whiteness value Color grayscale rating Standard depth "力 分" 可 以 翻 译 为 "force" Opacity Color constant value Color library search The ranges of dL, dC, dH, dE and MI (color change index) can be set separately. Color specification Calculate the reflectance and different types of chromaticity values, etc.

17. It is equipped with an LED ultraviolet excitation light source, which can control the UV level. (This function is optional)

System hardware: Screen color corrector, image catcher

System software

Digipix image color processing software

◆Under the fixed lighting conditions in the light source box, the RGB of the image capture device can be converted to the CIE system. ;

◆ Screen color characterization;

◆ Color measurement

◆ Characterization and analogization of object textures;

◆ Color difference analysis

DigiGrade digital color fastness rating software

◆The results of the color change and staining tests are digitally rated in accordance with ISO or AATCC standards;

◆Users can customize multi-fiber interlining.

◆ Automatic fabric fuzz and pilling rating;

◆ Blue woolen cloth in the digital assessment of sunlight fastness test;

◆ It can automatically rate multiple test samples simultaneously;

◆The rating report can save data and images;
