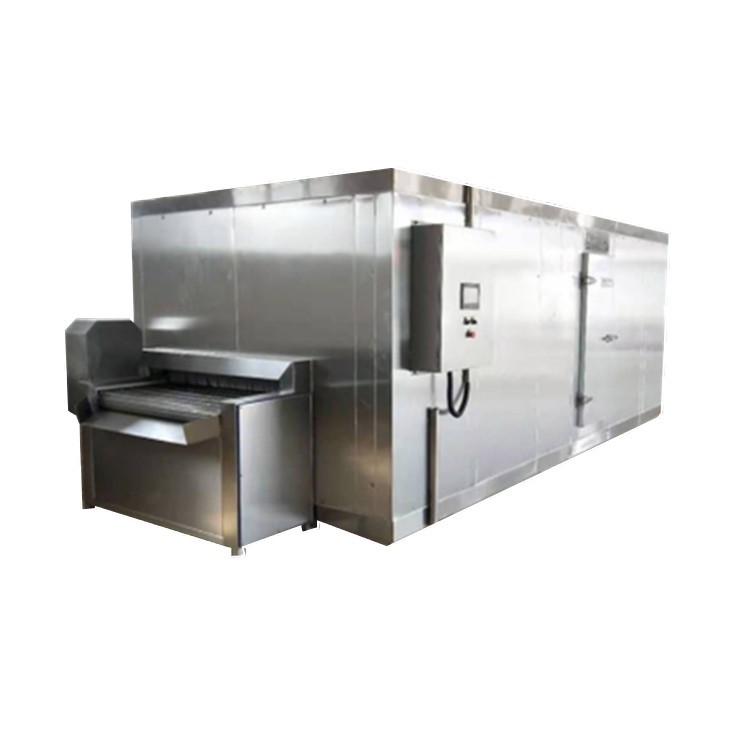

Tunnel quick freezer is a kind of tunnel structure is relatively simple and high efficient quick-frozen device,it have convenient operation and long service life. library board adopts double stainless steel sandwich polyurethane insulation board ,The heat preservation effect is good.internal components using high-quality stainless steel SUS304.easy cleaning ,HACCP requirement.

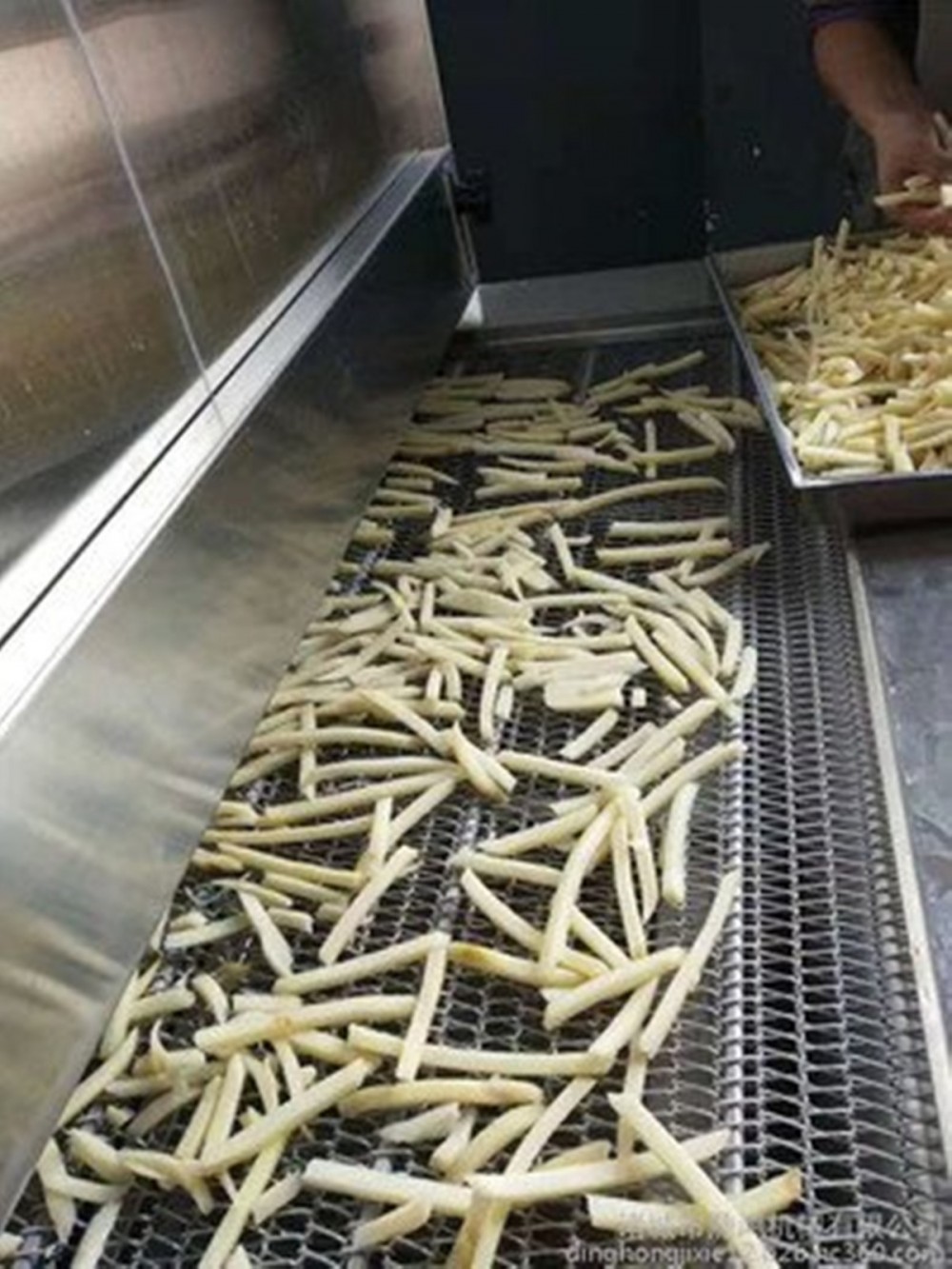

stainless steel mesh belt,the surface is smooth, easy to clean, using water frost,ensure clean sanitation.Freezing time can be adjusted, suitable for a variety of quick freezing food.

Model: Tunnel Freezer, Spiral Freezer, Fludized Freezer
Tunnel freezer : fish, burger, nuggets, meat ball, and other food.
Fluidized freezer: vegetables and fruits .
Spiral freezer: meat, chicken burger nuggets and so on.

Evaporator and winding
1.evaporator is aluminum finned tube which is of oxide antirust processing. It ensure uniform frost, air flow. All material is stainless steel.
2.Euipped with axial flow fan which is of high efficiency and energy saving,
3. Adopts manual defrosting. The defrosting water spraying device is set on upper of evaporator to ensure uniform defrosting rapid.

Evaporator and defrosting
1. It is designed based -40℃ evaporating liquid;
2. It is aluminum finned tube which is oxide antirust processing. It can ensure uniform frost, air flow, bracket.
3. It is axis air fan which of low noise and works stable
Electric control parts
All motors and electrical components is not lower than IP55 protection grade. Motor USES Y2 type waterproof.
