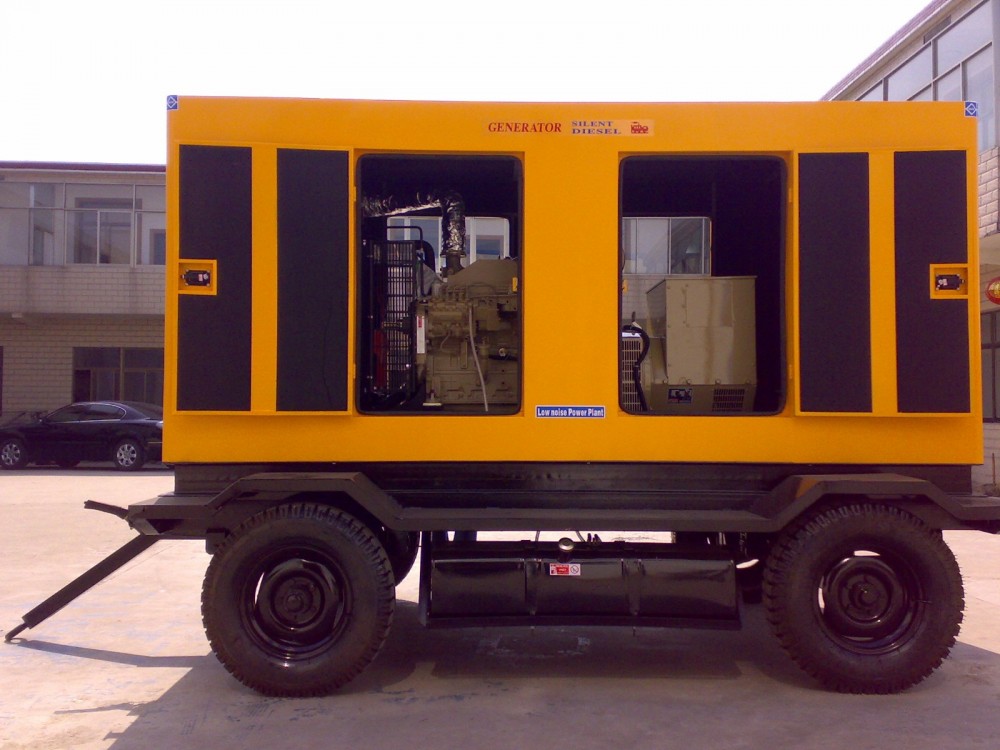

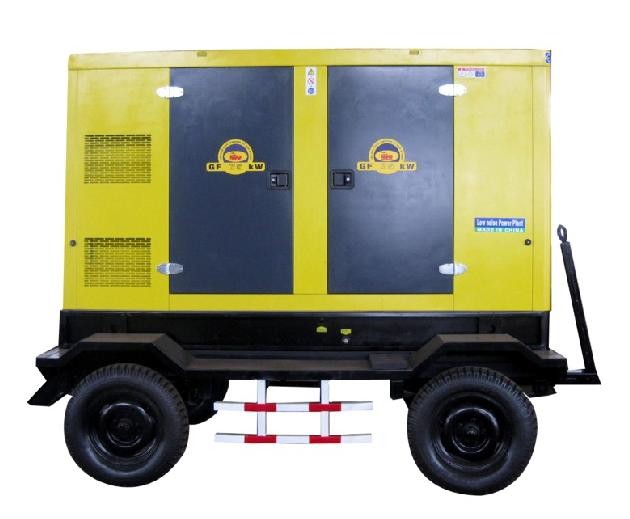

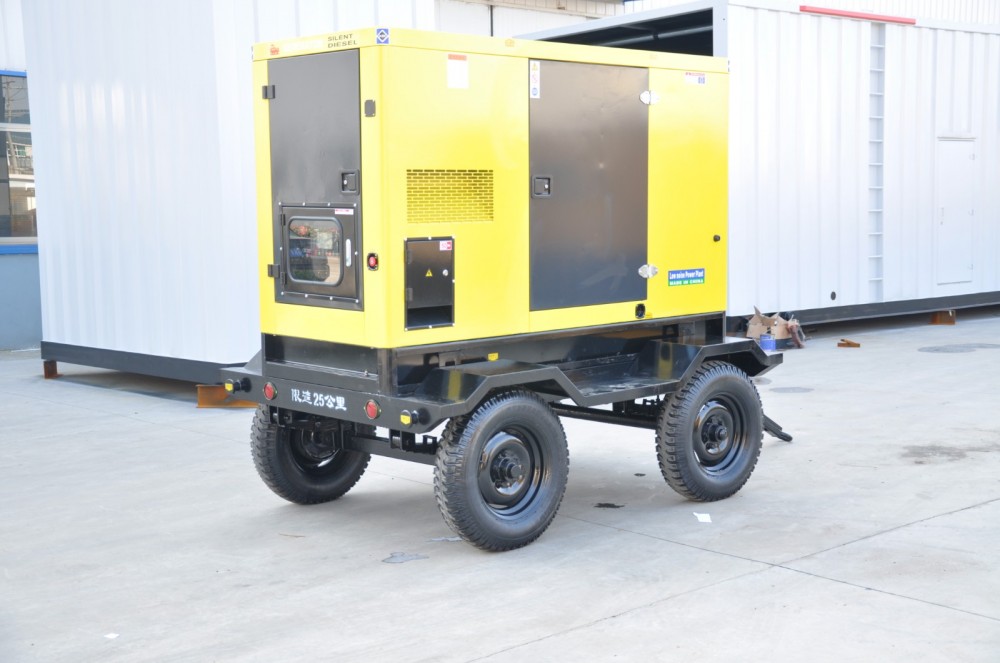

silent mobile diesel generator

It has a variety of structures and functions, including hand push, three wheel, four wheel, automobile power station, trailer power station, mobile low noise power station, mobile container power station, electric engineering vehicle, etc.
The system is designed and manufactured by our company with good operation performance and safety performance referring to the structures of many foreign mobile power stations.

The following configuration options are available:
1. Traction: adopt movable hook, 360 ° turntable, flexible steering, and ensure safety in driving.
2. Braking: at the same time, it has reliable air brake interface and hand brake system to ensure the safety in driving.
3. Support: in order to ensure the stability of power car during operation, 4 mechanical or hydraulic support devices are equipped.
4. Doors and windows: there are ventilation windows at the front, opposite doors at the rear, and doors on both sides for operators to enter and exit.
5. Lighting: there is a ceiling explosion-proof lamp in the car body, and there is a work table on the right side, and it is equipped with a work table lamp to facilitate the operation of the staff.
6. Rain proof and sound proof: the trunk and door of the power car are all decorated with double layers and equipped with sound-absorbing board to reduce noise; the exhaust pipe is wrapped with insulating cotton, with low noise and better rainproof function within 75db (a).
7. Silent box size: depends on the specification. The operator can walk around for easy operation and maintenance.
8. Exterior beauty: high polymer polyurethane paint is used, and the color can be determined by the owner. The exhaust pipe adopts lower exhaust to ensure the beauty.
9. Fire fighting: two fire extinguishers are equipped with the silent mobile trailer diesel generator.
Structure:
*The whole machine is small in volume, light in weight, compact in structure and novel in shape.
*The sound insulation cover has the advantages of beautiful shape, simple disassembly and assembly, and convenient operation of the genset.
*Multi layer shield impedance mismatch type sound insulation cover.
*High efficiency noise reduction multi-channel air inlet and exhaust, air inlet and exhaust channels, to ensure sufficient power performance of the genset.
*Good ventilation system and thermal radiation prevention measures ensure that the unit always works at the appropriate ambient temperature.

*The use of special noise reduction materials can greatly restrain the mechanical noise.
*High efficiency shock absorption measures ensure the smooth operation of diesel generator.
*A special observation window and an emergency stop button are arranged at the proper position of the anechoic shell, which facilitates the use and operation of the unit and the observation of the operation state of the genset.
*Automatic voltage regulator, excellent performance, reliable operation.
*Large capacity engine base fuel tank, which can run for 10 hours with continuous load.
*The noise is reduced between 68dB (a) and 75db (a) (measured at 7m from the sound source).
*Special quick opening cover plate is convenient for maintenance. The combustion efficiency of the direct injection combustor is high and the noise is low.
This silent type diesel generator set has super function of lowering bath sound. It is widely used in many industries such as hospitals, schools, etc. with integrated design and completely independent configuration, it can meet the demand of different customers.
