2、This diesel generator set has stable performance, reliable and durable, and strong environmental adaptability.

3、Huaquan generator set nationwide warranty, 12 months after the unit has passed the commissioning test or 1000 hours of cumulative operation; whichever comes first.

4、Huaquan generator sets can meet the personalized needs of customers in different countries and regions, and provide high-quality and reliable power guarantee for the world.

5、The unit has strong adaptability and can be matched with oil, diesel, water jacket, anti-condensation heater, mobile
trailer,rainproof shed, etc.

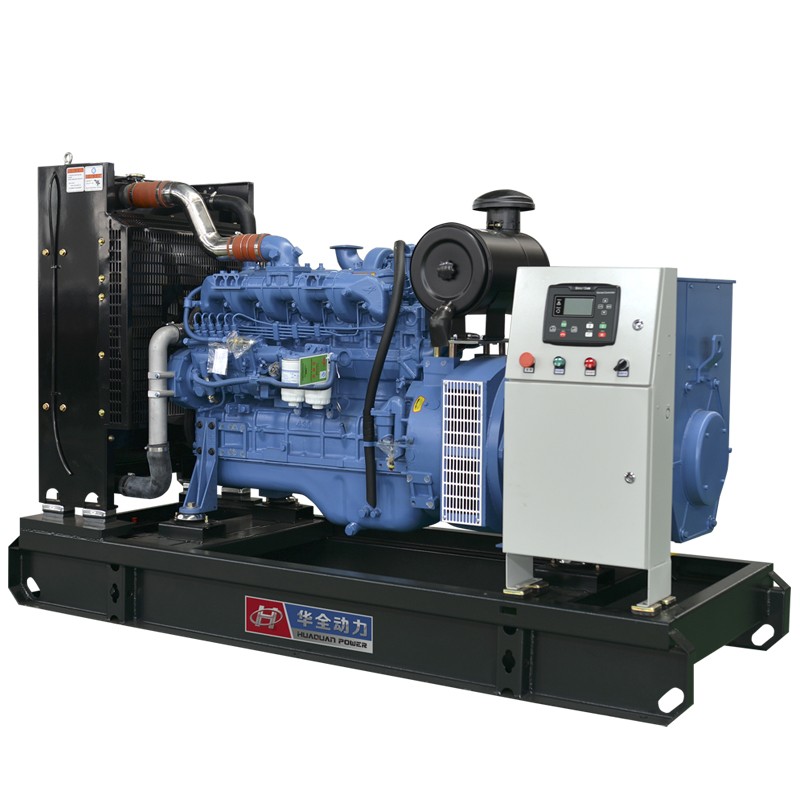

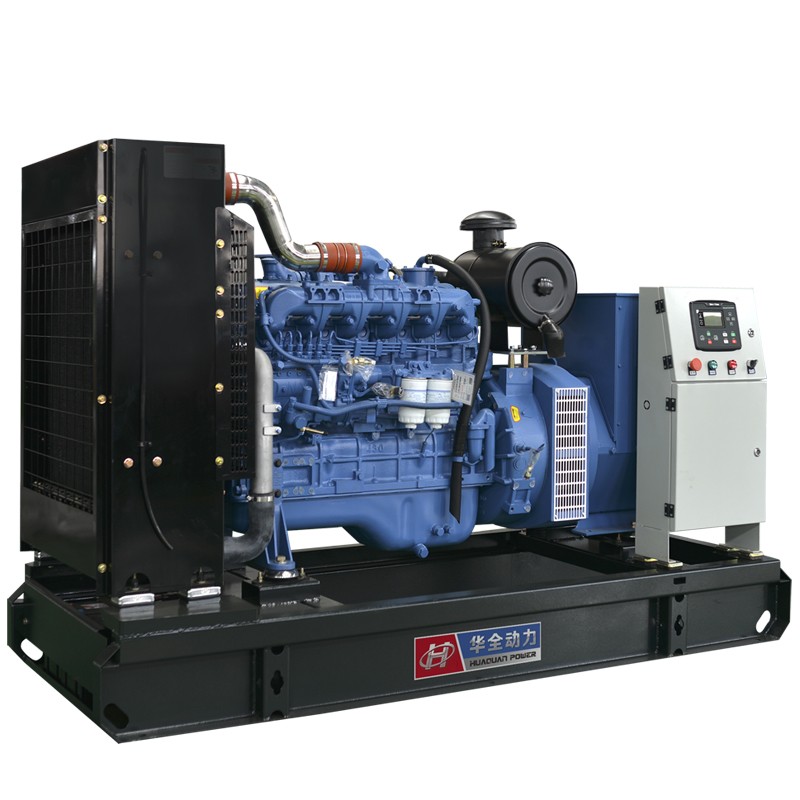

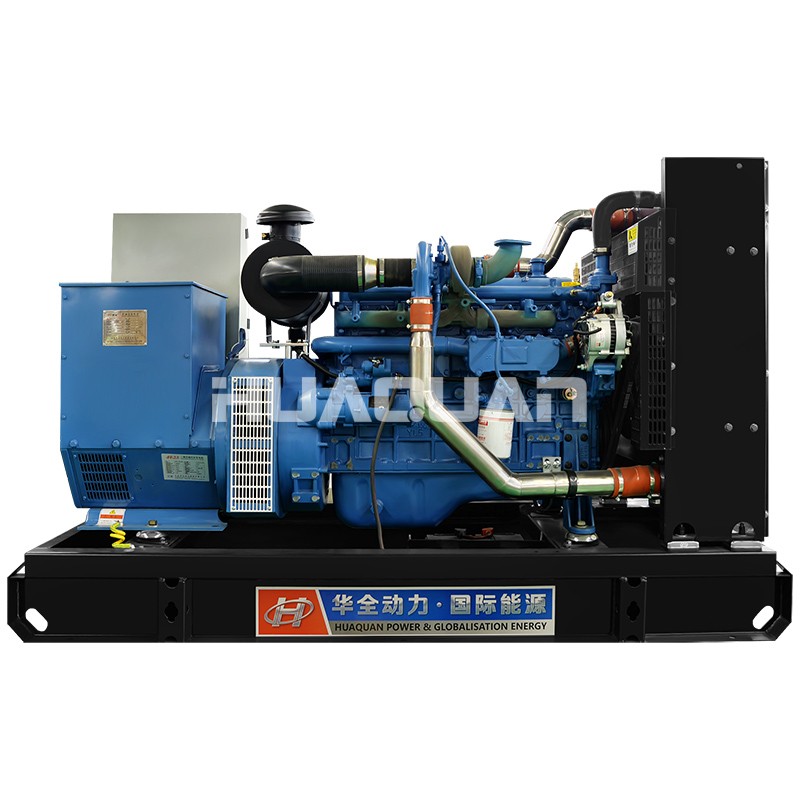

Generator set model：HQ100GF

Steady state voltage adjustment rate (%):≤± 1

Generator power:100kW/125kVA

Voltage fluctuation rate (%):≤ ± 0.5

Power factor:COSΦ = 0.8 (lagging)

Transient voltage adjustment rate (%):＋20 ～－15

Output voltage:400V/230V

Voltage stabilization time (s):≤1

Generator set current:180A

Steady state frequency adjustment rate (%):≤ ± 1

Rated frequency:50Hz

Frequency fluctuation rate (%):≤ ± 0.5

Rated speed:1500rpm

Transient frequency adjustment rate (%):+ 10 ~ -7

Fuel grade:(standard) 0 # light diesel (normal temperature)

Frequency stabilization time (S):≤3

Diesel generator size:2580*800*1450 （L*W*H mm）

Diesel generator fuel consumption (100% load):205g/kW·h

Diesel generator weight:1600kg

Diesel generator volume(LP7m):95dB（A）

Technical parameters of diesel engine

Diesel engines brand：Yuchai engine

Cooling method: Closed water-cooling

Diesel engines model: YC6B155L-D21

Oil supply method: direct injection

Engine cylinder number: 6/ L Type

Speed regulation method: Mechanical

Bore stroke: 108*125 mm

Intake method: Natural inhalation

Compression ratio: 17.5：1

Overload capacity: 110%

Start method：DC 24V Electric start

Diesel engines Speed: 1500rpm

Technical parameters of generator

Generator brand：Huaquan Brushless Generator

Protection level：IP22

Generator Model：HQF-100

Wiring mode：Three-phase four-wire, Y-connection

Generator power: 100kW/125kVA

Adjustment method: AVR (Automatic Voltage Regulator)

Rated voltage: 400V / 230V

Output frequency: 50Hz

Insulation class: H class

Output factor: COSΦ = 0.8 (lag)

Genset standard features

1)、Direct injection internal combustion engine(Diesel)；

2)、AC synchronous generator（Single Bearing）；

3)、Water Radiator design for 40-45℃ Ambient belt-driven fans and guards；

4)、Generation output air switch、Standard control panel；

5)、Steel common base with shock absorber；

6)、Dry-type air filter fuel filter，oil filter、starting motor、Self-charging alternator；

7)、starter battery and connecting cables；

8)、Industrial 9dB muffler and accessories；

9)、The engine and alternator’s original technical papers,manuals and testing reports ship with GenSet；

Optional accessories（Extra charged）

1)、Engine oil、diesel、water jacket、Anti-condensation heater

2)、Battery floating charger

3)、Self-protection unit/self-starting control panel

4)、Tree-remote control panel

5)、ATS AUTO-loaded transferring screen

6)、Daily fuel tank、Integral fuel tank

7)、Waterproof type(Cabinet)

8)、Mobile trailer(Drip proof)

9)、Mobile trailer(Silent type)
