1 Purpose:

The conveying linear grinder is a special machine tool for the surface processing of friction materials of vehicle disc brake pads. It is applicable to the grinding, grooving, corner to corner and ash brushing of various types of disc pads, which can ensure the surface roughness, parallelism and other requirements of friction pads.

2. Features:

Conveying linear grinder is a machining machine tool integrating rough grinding, grooving, fine grinding, chamfering, ash brushing and turning. It has high production efficiency and stable quality. It is suitable for the needs of mass production. It has the characteristics of simple operation, easy adjustment, high precision and continuous upper and lower pieces.

3. Equipment structure:

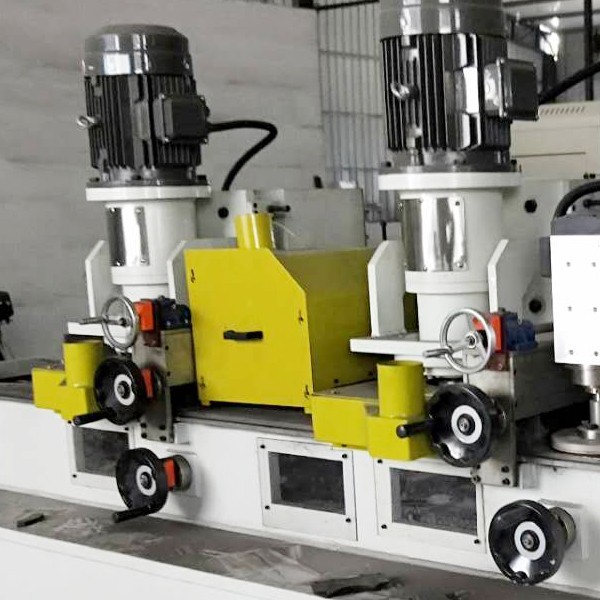

The conveying linear grinder is composed of a base, a conveying device, a rough grinding assembly, a grooving assembly, a fine grinding assembly, a corner assembly, an ash brushing assembly, a turnover mechanism and a dust suction assembly.

4. Working principle:

The brake disc is pushed into the permanent magnet white steel guide rail by the conveying push strip, and then the product is turned over to the next process through rough grinding, grooving, fine grinding, corner, ash brushing, and automatic turning mechanism.
