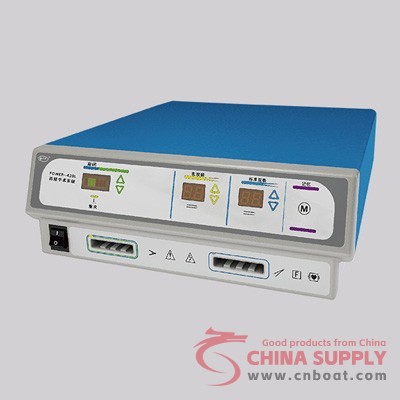

Introducing high-frequency craft design and manufacturing technology from Europe, using imported key components for assembly. Follow the 9706.1 and IE9706.4 standards. Suitable for neurosurgery, orthopedics, ophthalmology, and plastic surgery.

Main features:

1. It has two output modes: regular coagulation and fine coagulation.

2. The power is continuously adjustable from 0-50W, with a step size of 1W.

3. The coagulation mode is mainly used for deep surgery in neurosurgery, and can be foot controlled or automatically controlled for output.

4. Dimensions: 460 × 360 × 270

5. Weight: Net weight: 7Kg, gross weight: 11Kg

6. Usage conditions: ambient temperature 5 ℃~40 ℃, temperature ≤ 80% RH

7. Power supply: 220V ± 22,50HZ ± 1HZ, * * * * current ≤ 1.6A

Main technical data:

1. Instrument type: Class I CF type anti tremor ordinary equipment

2. Output power: Universal coagulation: 50W (100 Ω) Precision coagulation: 50W (100 Ω)

3. Main carrier frequency: 1024KHZ (RF range)
