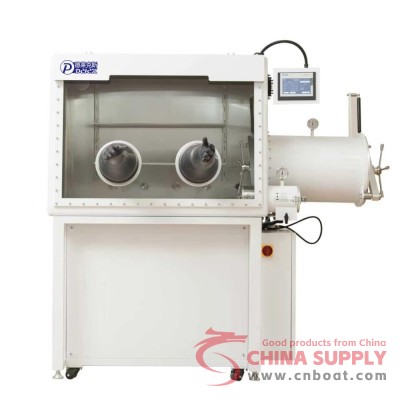

The single-station standard glove box is a standard single-station inert gas circulation glove box system, achieving stable low water-oxygen environment control with water/oxygen value ≤0.1ppm and leakage rate ≤0.001vol%/h. It supports 24-hour unattended circulation operation and is suitable for high-cleanliness experiments and material handling.
Specifications: Chamber size 1220mm*780mm*900mm (L*W*H, customizable); material SUS304 stainless steel, 3mm thickness; glove port 220mm; gloves imported butyl; glass window 10mm tempered glass; lighting high-end LED (no heat, eye-friendly, at the front top); filter high-efficiency filter <0.3μm; power 220V±10% 50Hz; leakage rate ≤0.001vol%/h.
Working principle: The system circulates inert gas (N2 or Ar) through a purification column with German BASF deoxidizing material and American UOP water-removing material, efficiently removing moisture and oxygen; the purified gas returns to the chamber in closed-loop circulation. The regeneration system uses dual-core spiral heating rods with precise temperature control to reactivate the saturated materials, doubling their service life. The transition chamber (large/small dual chamber) achieves safe transfer of samples via vacuum pumping and inert gas filling. The control system monitors water-oxygen value, pressure and leakage rate in real time, ensuring stable unattended operation.
Core advantages: Ultra-high performance (water/oxygen value down to 0.1ppm, leakage rate ≤0.001vol%/h, far better than ISO 10648-2 standard ≤0.05vol%/h); all imported core components with traceable quality; exclusive long-life regeneration technology (dual-core spiral heating rods); German SIEMENS touch screen with Chinese/English bilingual operation and pedal control.
Quality assurance: 3mm SUS304 stainless steel throughout; 10mm safety tempered glass window. Options include small/large chamber heating, built-in refrigerator, constant-temperature air conditioning, organic solvent adsorption device, etc. After-sales: response within 12 hours, on-site maintenance within 48 hours, 3-year warranty on the glove box body (excluding seals and wearing parts).
