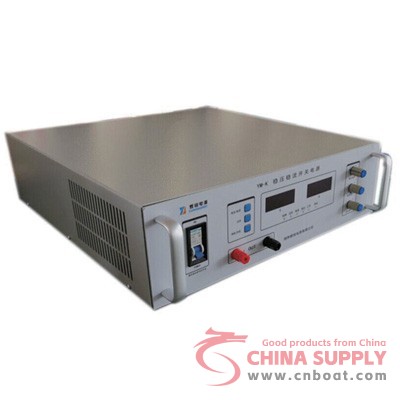

YM-K precision DC stabilized voltage and current switching power supply is specially developed and produced to meet the needs of experienced capacitor manufacturers. It can also be equipped with discharge and pulse aging functions. It has excellent electronic characteristics such as high precision and stable performance, as well as a series of advantages such as small size, light weight, high efficiency, and fast response speed. This series of DC power supplies has the functions of automatic switching between constant voltage and constant current working modes, overvoltage protection circuit, and short-circuit protection.
1） The main performance features of YM-K precision DC stabilized voltage and current switching power supply include excellent electronic characteristics such as high accuracy and stable performance, as well as a series of advantages such as small size, light weight, high efficiency, and fast response speed. This series of DC power supplies has the functions of automatic switching between constant voltage and constant current working modes, overvoltage protection circuit, and short-circuit protection. For the convenience of use, this series of DC power supplies also adds preset and viewing functions for constant voltage value, constant current value, and overvoltage protection value. To adapt to the experienced use of capacitors by capacitor manufacturers, discharge and pulse aging functions can also be selected. This series of DC power supplies is an ideal voltage current stable power supply, which can be widely used in factories, schools, research institutes, laboratories, and various sectors of the national economy.
Specification range: Output voltage 0-3000V, output current 0-500A, output power within 0-10KW, optional
1. Constant voltage and constant current: The voltage and current values can be continuously adjusted from zero to the rated value, and the constant voltage and constant current automatically switch
2. Overvoltage protection: The voltage protection value is continuously adjustable from 0 to 110% of the rated value. When the output voltage exceeds the voltage protection value, the output is cut off
3. Short circuit protection: allows long-term short circuit or short circuit startup in any working state
4. Overload protection: When the power supply or load fails and the output voltage exceeds the set value, the power supply will cut off the output
5. Pulse function: Can be equipped with a time controller to form a DC pulse power supply (optional)
6. Intelligence: Can be connected to a computer to form an intelligent voltage and current stabilizing power supply controlled by the computer (optional)
2） Main purpose
1) Experienced electrolytic capacitors, empowered by tantalum electric customers
2) DC motor detection, aging; Electric vehicle motor testing and aging
3) Aging and routine testing of electronic components such as resistors, relays, motors, transistors, etc
4) Laboratory, electronic equipment, automatic testing equipment
