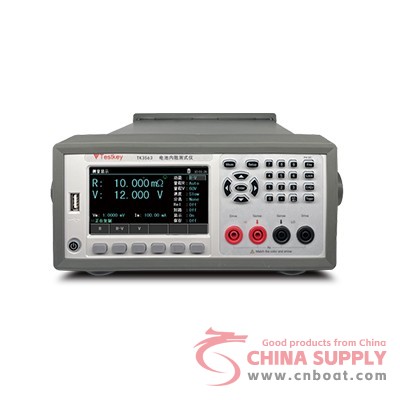

Impedance basic accuracy: 0.1%, minimum resolution: 1 μ Q
Voltage up to 1000V, accuracy: 0.05%, minimum resolution: 100 μ V
The maximum testing speed is 20ms for four terminal testing, and the measurement is not affected by the impedance of the test line
Oral contact inspection to check if the test line is in good contact during the measurement process
Deviation Deduction (REL) and Reference Value Calculation Function, Zeroing Function
Port V, I test signal level monitoring function
Oral graphic scanning and analysis function, monitoring the discharge process of the battery
Comparison function of 10 gears, up over, down over, qualified, and alarm function
□ Statistical function, providing 100 sets of instrument files for storing and loading CpK, Cp and other statistical measures
Screen capture function, data recording and parameter saving function
The instrument operation software can be automatically upgraded through USBHOST

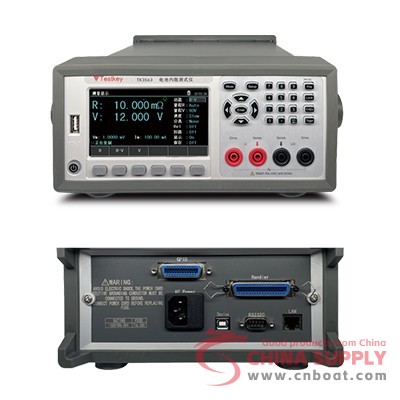

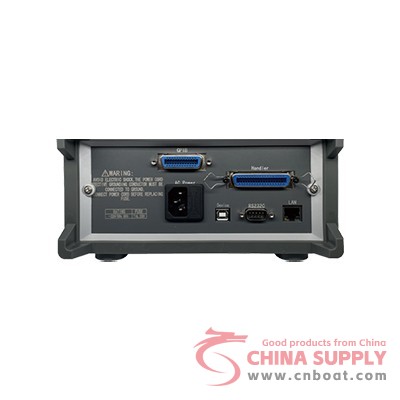

The Handler interface is used to implement online operations
Product Application
◆ Used for rapid measurement of button batteries and their battery packs, etc
◆ Used for battery measurement in smartphones, household appliances, electric vehicles, and electric bicycles, etc
◆ Measurement of equivalent resistance of high positive batteries and supercapacitors
◆ Determination of degradation and life evaluation of various batteries
UPS online detection
