Performance Characteristics

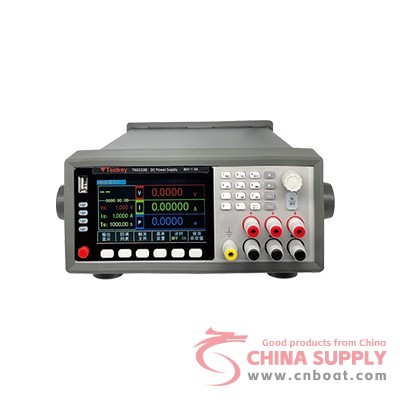

4.3-inch 24 bit true color LCD screen, 480X272 resolution

Linear design, high-speed and high-precision (1ms/0.1mV/0.01mA)

High precision, high stability, low ripple, low noise

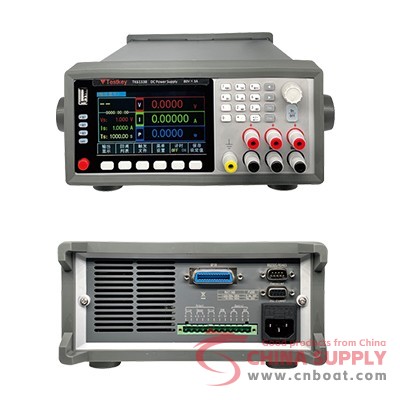

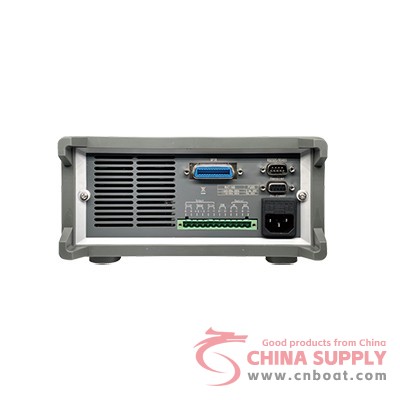

□ 1/22U ultra small size, front and rear panels (four ends) output and sampling end

Voltage test (DVM), resistance test (51/2 digital milliohmmeter)

□ Can integrate 8 temperature testing modules (supporting various thermocouples such as K, T, J, N, E, S, R, and B)

Clear and concise system settings, Chinese and English operation interface

Powerful programming ability, with 1000 sets of settings for state memory storage and retrieval

20 trigger files, each file can support up to 1000 test series, with programming loop output

Oral timed output: time (0.01-999.99s)

Flexible and convenient voltage, current, and time setting methods (knob or numeric keypad)

Remote compensation function of Luo

The measurement result data can be saved on a USB flash drive

Oral screenshot function, data recording and parameter saving function

Instrument firmware program can be upgraded through USBHOST

The Handler interface is used for online operations

Intelligent temperature control fan for reducing usage noise

Protection against overvoltage, overcurrent, and overtemperature
