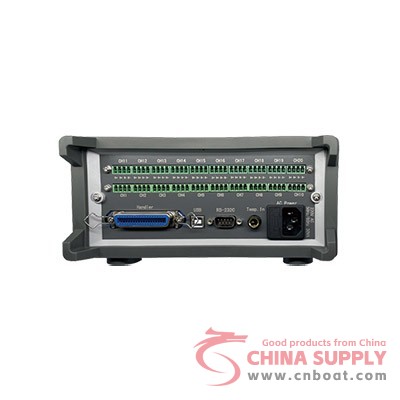

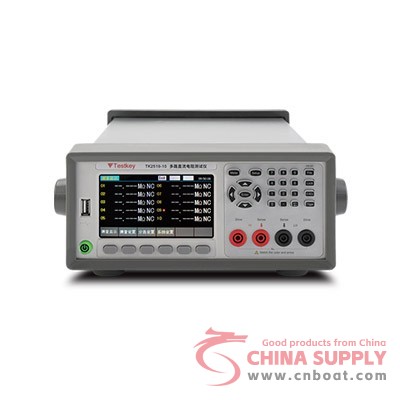

TK2519 multi channel resistance tester made in China

Performance Characteristics

Switch between single machine mode and scanning mode at will, achieving dual use of one machine

Supports up to 30 channel scanning at the mouth

Scanning test end for mouth crimping method, convenient for customer operation

The maximum sampling rate of the channel is about 12ms/second

Maximum resistance accuracy: 0.05%, minimum resolution: 1uQ

Basic accuracy of mouth temperature: 0.2 ° C

Multiple testing function combinations such as R, LPR, T, etc

The mouth supports two temperature sensors, PT100 and PT500

Low voltage testing mode effectively protects the tested component

Temperature compensation function (TC)

Oral misalignment voltage compensation function (OVC)

User self calibration function (0ADJ)

Oral screenshot function, data recording and parameter saving function

Each channel can independently set sorting boundaries and Handler sorting results

Instrument firmware program can be upgraded through USBHOST

The Handler interface is used to implement online operations

Supports 100 sets of internal parameter files

Product Application

◆ Component testing for multi winding transformers and motors

◆ Multi strand cable
