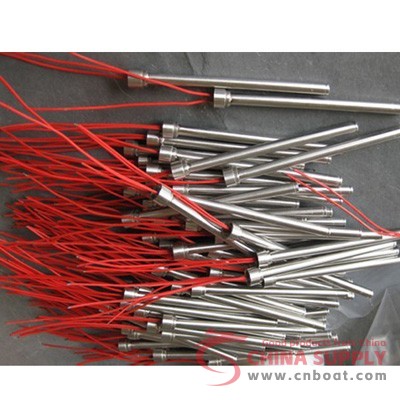

Single head electric heating tubes are suitable for working in heating media that cannot be wired at both ends, such as high and low temperature insertion heating for various sizes of molds and mechanical equipment, including stamping dies and other molds, medical equipment, plastic sealing machines, bottle mouth capping machines, continuous automatic sealing machines, cigarette making machines, etc. The main ones are as follows:
01. Used for drying wood, paper, printing and dyeing, paint residue, etc.
02. Melting and heating of saltpeter and other salt substances.
03. Melting low melting point alloys, such as lead melting furnaces, tin melting furnaces, etc.
04. Building heating.
05. Infrared radiation heating device.
06. Low temperature electric furnaces such as industrial electric furnaces with air circulation, electric furnace boxes, etc.
07. Heating devices in oil, water, and other chemical liquids, as well as plating bath solutions.
08. Seawater electric distillation device.
09. Heating device for alkali and acid.
10. In the food industry, it is used to bake various breads, cookies, pastries, and as an electric heating device in water tunnels.
11. In plastic product processing and extrusion equipment and rubber product molding and vulcanization equipment.
12. In medical and health disinfection equipment, such as sterilizers, disinfectors, etc.
13. Heating and enamel wire drying devices for motor vacuum impregnation equipment.
14. Various household electric appliances in daily life, such as electric stoves, ovens, rice cookers, frying pans, water heaters, irons, and other products.
Features
01. Usage conditions: ambient temperature -20 ℃~+60 ℃, relative temperature<80%;
02. Electrical strength: Cold state withstand voltage AC working at 1500V 50HZ for 1MIN without breakdown phenomenon;
03. Thermal insulation performance: AC 1000V 50HZ for 1MIN without breakdown phenomenon;
04. Leakage current<0.5mA; Insulation resistance>30M Ω;
05. Power deviation+5%, -10%; Surface load up to 25W per square centimeter;
