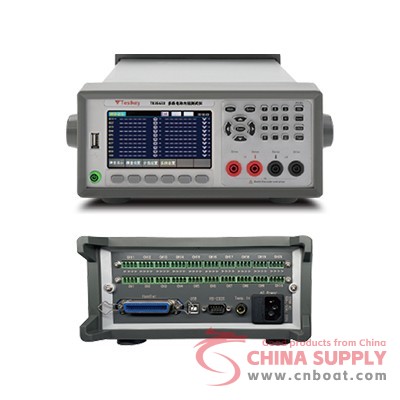

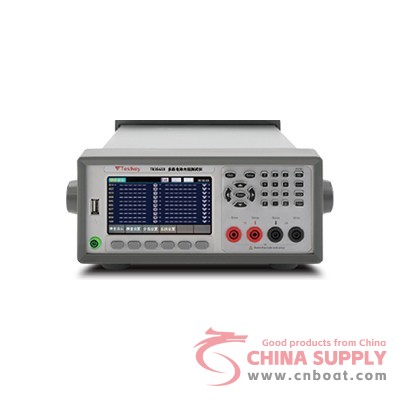

Performance Characteristics
Switching between single machine mode and scanning mode, achieving dual use of one machine

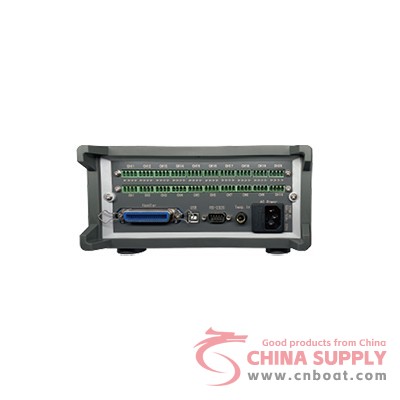

The host supports 30 channel scanning and can be expanded to 200 channels
Chinese and English optional operation interface
1kHz AC constant current source test
mouth
Impedance basic accuracy: 0.1%, minimum resolution: 1 μ Q
mouth
Voltage up to 200V, accuracy: 0.05%, minimum resolution: 1mV
mouth
The maximum testing speed is 20ms for four terminal testing, and the measurement is not affected by the impedance of the test line
mouth
Contact inspection, checking whether the test line has good contact during the measurement process
Deviation Deduction (REL) and Reference Value Calculation Function, Zeroing Function
V. I test signal level monitoring function
mouth
Graphic scanning and analysis function, monitoring the discharge process of the battery
0
Comparison function of 10 gears, up over, down over, qualified, and alarm function
Mouth by mouth
Statistical function, providing 100 sets of instrument files for storing and loading statistics such as CpK and Cp
mouth
Screen capture function, data recording and parameter saving function
The instrument operation software can be automatically upgraded through USBHOST
The Handler interface is used to implement online operations
Scope of application
◆ Used for rapid measurement of button batteries and their battery packs, etc
◆ Used for battery measurement in smartphones, household appliances, electric vehicles, and electric bicycles, etc
◆ Used for measuring high-voltage batteries
Measurement for early battery development research
Measurement of various contact resistances
◆ Determination of degradation and life evaluation of various batteries
UPS online detection
Measurement of Equivalent Resistance (ESR) of Supercapacitors
